XTAR MC4S four channel (1-4 cells) fully automatic LiIon & NiMH battery charger. Powered by the included 5VDC input USB cable and AC wall adaptor.

Features:

• Four cell charger for charging:
  • 3.6V/3.7V lithium ion cell in sizes 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700*, 21700*, 22650, 25500, 26650
  • 1.2V NiMH/NiCd cells in sizes: AAAA, AAA, AA, A, SC & C
  • * Cannot charge protected 20700 or 21700 cells
  • 26650 size cells in Channels 1 and 4 only
  • Unprotected 21700 size cells in Channels 2 & 3 only
• Powered via USB-A to USB-C input (cable included). Use with 5V 2.1A USB adaptor for optimum performance.
  • Auto selects Charging Current:
    • 4 cells = 0.5A
    • 2 cells = 1.0A
• Sliding contacts for firm contact with battery during charging
• LED charging status and charging current indicators per channel
• 0V discharged cell wake-up function
• Cut-off voltage 4.2V (±0.05V) cut-off current ≤120mA.

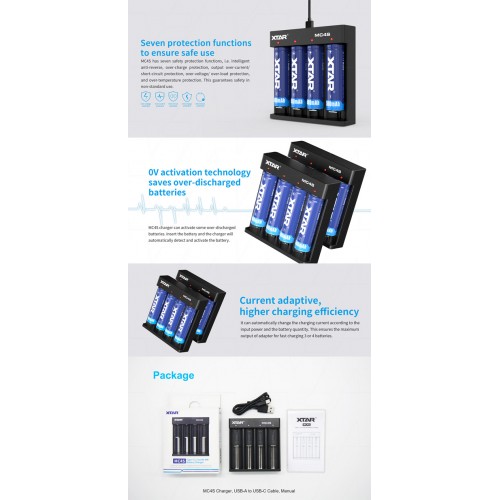

• 7 levels of protection
  • Intelligent reverse polarity protection
  • Over charge protection
  • Over current protection
  • Over voltage ptotection
  • Over load protection
  • Over temperature protection
  • Short circuit protection

MC4 package includes:

• MC4S charger
• USB Type-A to USB Type-C Input Cable
• Manual and warranty card
