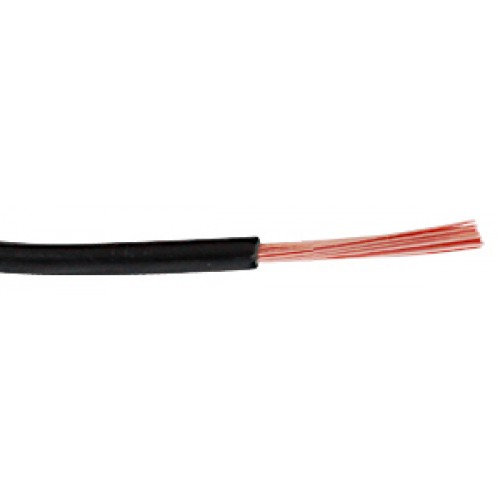

30m Black Oxygen Free Auto Cable 2.5mm
Specifications:
| Part No. | ACX0693 |
| Type | CABLE |
| Brand | OEX |
| Unit of Measure | EACH |
| Description | Single Core Cable 2.5mm Black 30m (NZ Ref.148) |
| Conductor Strand Diameter | .32mm |
| Number of Conductor Strands | 9 |
| Trace Colour | No Trace |
| Conductor Cross Section | .64mm2 |
| Industry Known Size | 2.5mm |
| Note | Oxygen Free Copper |
| Weight | .33kg |
| Length | 30m |
| Cable Size | 2.5mm |
| Cable Type | Standard |
| Gauge | 20 |
| NZ Code | 148 |
| Environmental | UV Stabilized |
| Cable Colour | Black |
| Temp Rating | V90 (90C) |
| Voltage Rating | Up to 110V |
| Conductor Material | Copper |
| Compliance | AS/NZ 3808:2000 & RoHS |
| Insulation Type | PVC |
| Features | • Temp Rating :V90 (90oC) • Oxygen Free • Voltage Rating Up to 110V • ROHS Compliant • Strand diameter: 0.3mm • Number of strands: 9 • Conductor cross section: 0.64 |
ACX0693 Black Auto Cable 30mtr
- Product Code: ACX0693 Black Auto Cable 30mtr
- Availability: In Stock
-
$23.00
- Ex Tax: $20.00
Tags: auto cable,
